Crest-X VPL
Call (859) 494-5235 to learn more about our special offers.
| Your Price | $5,193.00 |
|---|---|
| Regular Price | |
| Additional Shipping? | Yes |
| *Non-Contiguous U.S. States & Territories - please call for shipping charges. | |
The Crest 400-X VPL is a value hard to find in Vertical Platform Lifts.
The Crest 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
The Crest 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 53" |
| Arrives Assembled | Yes |
| Drive System | Acme Screw Drive |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Platform Size | 36" x 48" (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) |
| Platform Configuration | Straight-Thru Access |
| Guard Panel | 36" for 36"x48" Platform, all others 42" |
| Lift Speed (FPM) | 10.4 |
| Portable | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Lifting Height
- $0.0053" MAXIMUM LIFT HEIGHTThe top limit switch sets where your lift will actually stop. This can be set up to 53" high.
Application
- $0.00Residential
Power Source
- $0.00AC POWERED
- $1,846.00DC Powered
Use Option
- $216.00OUTDOOR USE
Tower Orientation
- $0.00TOWER ON THE LEFT
- $0.00TOWER ON THE RIGHT
Number of Stops
- $0.002 STOPS
Hoistway Installation
- $0.00INSTALLED IN A HOISTWAY
- $0.00NO HOISTWAY
Platform Type (Width, Depth, Height)
- $0.00Select From Options Below
- $0.00[___________36"_High____________]
- $0.00Straight Through (180 Degrees) Requires Folding Ramp
- $0.0036 X 48 X 36 STRAIGHT THROUGH PLATFORM
- $0.00[___________42"_High____________]
- $0.00Straight Through (180 Degrees)
- $454.0036 X 54 X 42 STRAIGHT THROUGH PLATFORM
- $839.0036 X 60 X 42 STRAIGHT THROUGH PLATFORM
- $931.0042 X 54 X 42 STRAIGHT THROUGH PLATFORM
- $1,047.0042 X 60 X 42 STRAIGHT THROUGH PLATFORM
- $0.0090 Degrees (Tower on Left / Right determined by looking into lift from ground level)
- $839.0036 X 54 X 42 90 Degree LEFT PLATFORM
- $839.0036 X 54 X 42 90 Degree RIGHT PLATFORM
- $1,247.0036 X 60 X 42 90 Degree LEFT PLATFORM
- $1,247.0036 X 60 X 42 90 Degree RIGHT PLATFORM
- $1,354.0042 X 54 X 42 90 Degree LEFT PLATFORM
- $1,354.0042 X 54 X 42 90 Degree RIGHT PLATFORM
- $1,454.0042 X 60 X 42 90 Degree LEFT PLATFORM
- $1,454.0042 X 60 X 42 90 Degree RIGHT PLATFORM

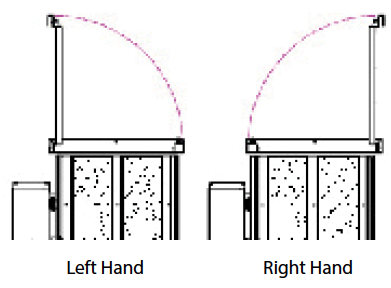

Platform Gate
- $0.0042" High Gates Below not for 36" High Platform
- $0.00NO PLATFORM GATE
- $1,454.00
36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT - $1,454.0036 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT
- $1,700.0042 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT
- $1,700.0042 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT
Platform Controls
- $177.00Emergency Stop Alarm with Lighted Button
Platform Options
- $154.0054" HANDRAIL [Not applicable for 36x48x36]
- $193.0060" HANDRAIL [Not applicable for 36x48x36]
- $108.00Keylocks for Controls
- $154.00CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)
Ramp Type
- $0.0036" AUTO-FOLD RAMP [Must Select for 36x48x36 Platform]
- $116.0042" AUTO-FOLD RAMP
- $0.0036" FIXED RAMP
- $116.0042" FIXED RAMP
- $262.00Pit, no Ramp (Add Pit Switch)
Interlocks
- $0.00INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.
- $585.00EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH
- $585.00EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH
- $0.00OTHER INTERLOCK OPTIONS
- $300.00WIRING FOR INTERLOCKS PROVIDED BY OTHERS

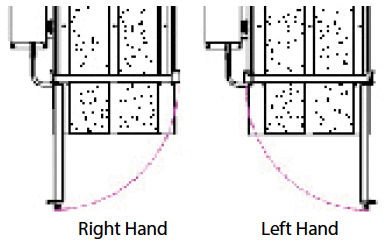

Landing Gate
- $1,516.00
36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT - $1,516.0036 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT
- $1,700.0042 X 42 LANDING GATE W/EMI INTERLOCK, LEFT
- $1,700.0042 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT
Landing Gate Call/Send
- $136.00CALL-SEND ROCKER SWITCH FOR LANDING GATE
- $247.00CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE
Call Send Options
- $262.00CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)
- $354.00KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)
Fascia Panels
- $0.00NO FASCIA PANELS
- $116.00FASCIA PANEL; 41" WIDE x 24" TALL
- $162.00FASCIA PANEL; 41" WIDE x 53" TALL
- $147.00FASCIA PANEL; 47" WIDE x 24" TALL
- $231.00FASCIA PANEL; 44" WIDE x 53" TALL
- $239.00FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT
- $270.00FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT
Additional Options
- $300.00TOWER BRACE WITH BRACKET
- $47.00EXTRA KEYS (EACH)
- $262.00FLOAT LEVEL SWITCHFloat switch stops the unit completely from operating when water gets to a certain level and trips the switch.
- $0.00CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for Availability and Price)
Delivery Options
- $539.00FLAT BED AND FORKLIFT DELIVERY
- $130.00Liftgate Service
- $145.00Residential Delivery or High Cost Delivery ZoneHigh Cost Delivery Zones: Los Angeles, Seattle, Boston, Philadelphia, New York City
