Guide Rail Backing

Use two continuous 4" x 4" posts as backing for the guide rail attachment.
Guide rail backing must be tied to a horizontal structural member (header or floor plate) at the top, the bottom, and at a maximum of 10' in between.
Location varies depending on application. Request application specific drawings before beginning construction.

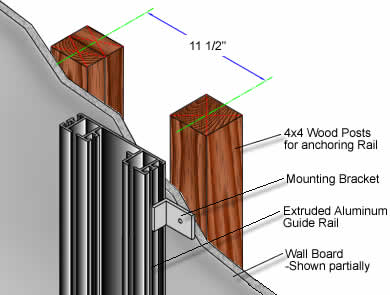

Dumbwaiter Guide Rail Backing Detail

;
