Golden Compass

spacer
Quick Ship Product
spacer

model: GP-600

Golden Compass
Click to enlarge
spacer
Additional Images
  • Charcoal Captain's Seat
  • Proflex Seat

Additional Resources
Call (859) 494-5235 to learn more about our special offers.
Your Price$3,699.00
Regular Price$5,635.00
*Non-Contiguous U.S. States & Territories - please call for shipping charges.

Warranty Info

Click Here
Product Review
(0)
(0)
No Sales Tax in most states.

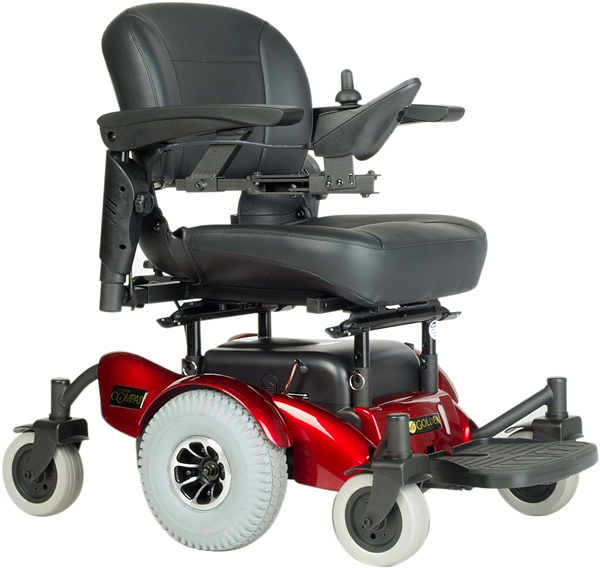

The Compass is a center-wheel drive power chair designed for serious power chair users who count on their power chair day in and day out. It uses 10" center drive wheels and 6" casters at the front and rear of the chair to give you uncompromising stability and the maneuverability you need indoors.

The base of the Compass allows you to adjust the height of the seat as well as slide it so you can get into a position to easily operate the controls. The Compass also includes a 3-way adjustable foot rest, flip-up arms, and can be fitted with a wide variety of seating choices from Captain's chairs to Pro-Flex seats which have completely customizable cushioning. All together, this makes the Compass worth the consideration of any serious power chair user.
Weight Capacity300 lb
Overall Length38.5"
Overall Width24.5"
Range20 mi
Weight, Base88 lb
Turning Radius19"
Weight, Total211 lb
Top Speed5 mph
Weight, Seat46 lb
Minimum Seat Height18"
Maximum Seat Height23"
Weight, Batteries77 lb
Drive Wheels10" Flat Free
Caster Wheels6" Flat Free
Charger TypeOff-board
Controller TypeDynamic A-Series, 50 Amp Integral
Battery TypeU-1 x 2 or 22NF x 2
Shipping Info
Shipping Weight 187.0 pounds
Shipping Length 33.0 inches
Shipping Width 25.75 inches
Shipping Height 16.25 inches
  • Color

    • $0.00
      Touch Up Paint, Candy Apple Red
      Candy Apple Red
      spacer
    • $0.00
      Touch Up Paint, Blue
      Blue
      spacer
    • $0.00
      Touch Up Paint, Onyx
      Onyx
      spacer
    • $0.00
      Touch Up Paint, Hunter Green
      Hunter Green
      spacer
  • Batteries

    • $0.00
      No Image
      U-1 Batteries (set of 2)
      spacer
  • Controller Position

    • $0.00
      No Image
      Controller On The Left
      spacer
    • $0.00
      No Image
      Controller On The Right
      spacer
  • Seating Upgrades

    • $0.00
      No Image
      High Back Captain's Chair, 16" x 16"
      spacer
    • $0.00
      No Image
      High Back Captain's Chair, 18" x 18"
      spacer
    • $0.00
      No Image
      High Back Captain's Chair, 20" x 20"
      spacer
    • $360.00
      No Image
      Custom Seat Sizes, Pan Seats, or Proflex Seating Frames
      spacer
  • Seat Color

    • $0.00
      No Image
      Two-Tone Coffee/Sand Vinyl
      spacer
    • $0.00
      No Image
      Two-Tone Charcoal/Grey Vinyl
      spacer
  • Leg Rests & Supports

    • $0.00
      No Image
      Adjustable Footplate
      spacer
    • $284.00
      No Image
      Elevating Leg Rests
      spacer
    • $168.00
      No Image
      Swing Away Footrests
      spacer
    • $264.00
      No Image
      Amputee Support, 8" W x 10" L
      spacer
    • $264.00
      No Image
      Ampute Support, 10" W x 10" L
      spacer
  • Accessories

    • $0.00
      No Image
      Lap Belt
      spacer
    • $150.00
      Power Chair Cover, Large
      Large Power Chair Cover
      spacer
    • $63.00
      Cane Holder Tube
      Cane Holder Tube
      spacer
    • $56.00
      Crutch Holder
      Forearm Crutch Holder
      spacer
    • $34.00
      Deluxe Pack N Go
      Deluxe Pack N' Go
      spacer
    • $15.35
      Safety Flag
      Flag
      spacer
    • $98.77
      Power Buddy
      Power Buddy
      spacer
  • Accessories Requiring a Rear Mounting Bracket

    • $25.60
      No Image
      Rear Mounting Bracket
      Required for use with a rear basket, walker holder, oxygen tank holder, or quad cane holder.
      spacer
    • $108.00
      Rear Basket
      Rear Basket
      spacer
    • $122.00
      Walker Holder
      Walker Holder
      spacer
    • $175.00
      Oxygen Tank Holder
      Oxygen Tank Holder
      spacer
    • $96.00
      Quad Cane Holder
      Quad Cane Holder
      spacer
  • Service & Delivery

    • $0.00
      No Image
      Free 1 Year In-Home Parts & Service Coverage
      spacer
    • $0.00
      No Image
      Free In-Home Delivery & Setup
      spacer
spacer
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side

 Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.



Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.



Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.



Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.



Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
