AmeriGlide Rave Curved HD Stair Lift
| Your Price | $12,010.00 |
|---|---|
| MSRP | |
| Additional Shipping? | Yes |
| *Non-Contiguous U.S. States & Territories - please call for shipping charges. | |
| Warranty Info | |
This stair lift is built to last. Every staircase that is fitted with a AmeriGlide Rave Curved HD is measured with a calibrated camera kit for digital accuracy. Constructed with highly durable steel, custom precision-bent rails, and finished by experienced craftsmen, this true curved rail is highly engineered to give you an extraordinarily smooth ride.
Your unique path to independence will allow you to enjoy time with your family and your home on every level giving you independence, freedom and the quality of life you deserve.
The build and delivery methods also allow installers to work more quickly and efficiently when they arrive at your home. The lift can be installed with minimal disruptions to you.

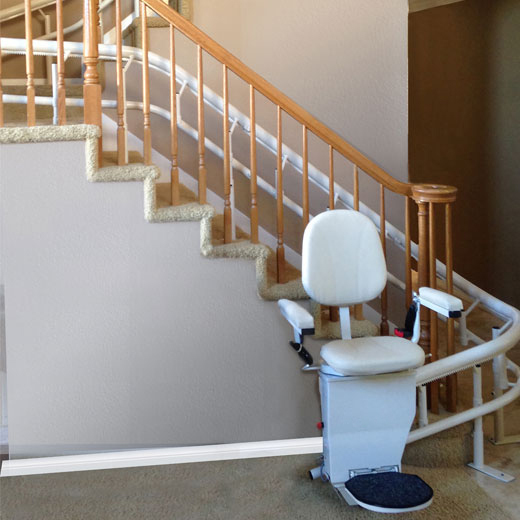

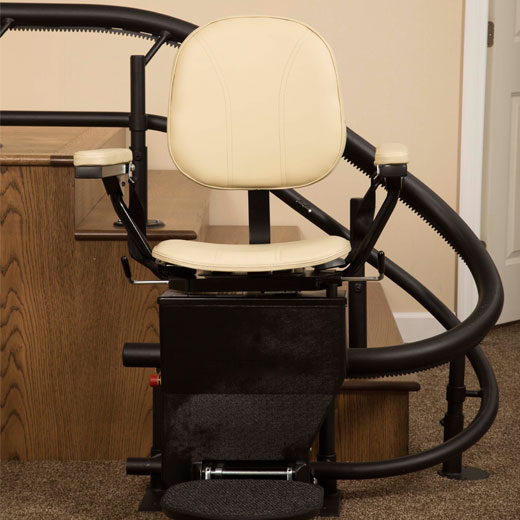

Perfect for a stairway with a 90 degree turn, 180 degree, or even a spiral staircase. The AmeriGlide Rave Curved HD can even be built to accommodate multi-story applications.

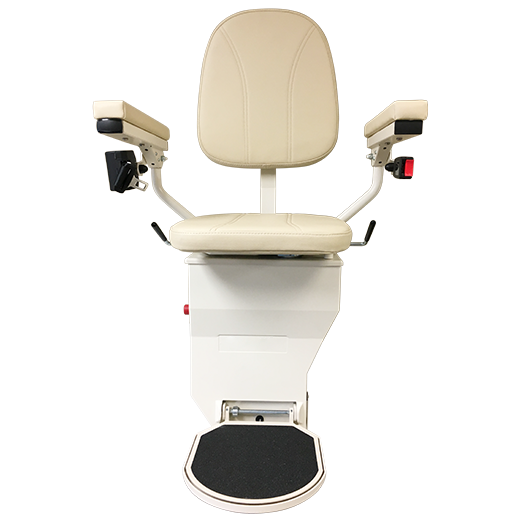

An ergonomically-designed seat features swivel seat and "flip-up" arms to make entry and exit easier.
Custom color and fabric options are available to help make the AmeriGlide Rave Curved HD Stair Lift a tasteful addition to any home.
This stair lift must be installed by trained installers. It is not user installable; however, the installation cost is included in the shipping fee. To learn more about your options and order your AmeriGlide Rave Curved HD Stair Lift stairlift, contact one of our stair lift experts today.
Additional Features:
- Narrower profile
- Extremely quiet, smooth ride
- True-Curve rail with advanced bending technology creates smoother turns
- Supportive, ergonomic seating
- Simple-connect rails and lighter chassis for easy installation
| Drive Type | Steel Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | No |
| Basic Installation Included | No |
| Swivel Seat | Yes |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 18' |
| Constant Pressure Controls | Yes |
| Max Track Length, Optional | 164' |
| Footrest Safety Sensor | Yes |
| Rail Angle, Max | 60° |
| Seat Width, Min | 21" |
| Seat Depth | 15" |
| Warranty | Limited Lifetime, 2-Year Parts, 1-Year Battery |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Unit Footprint, Parked | 16" |
| Digital Diagnostics Display | No |
| Key Lock | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Seat Color
- $0.00Beige
- $0.00Black
Rail Color
- $0.00Beige
- $0.00Black
Base Unit
- $0.00
90 Degree first turn, up to 18' rail - $778.0090 degree first turn, up to 24' rail
- $500.00
180 degree first turn, up to 18' rail - $1,112.00180 degree first turn, up to 24' rail
- $4,667.00Custom applications, up to 24' rail
- $6,167.00
Sweep, up to 24' rail - $15,667.00
Spiral, up to 24' rail - $0.00
Straight with Overrun, up to 16' rail - $0.00Straight with Intermediate landing, up to 16' rail
Options
- $0.00Seat Belt
- $0.00Top & Bottom Call-Send Stations
- $300.50Additional Call/Send
- $2,492.0090 Degree Park
- $2,333.0090 Degree Turn
- $3,033.00180 Degree Park
- $2,883.00180 Degree Turn
- $174.75Additional Track (per foot)
- $842.00Extra Spiral (per foot)
- $500.50Extra Sweep (per foot)
- $558.00Additional Charge Station
- $342.00Drop Nose
- $300.50Key Switch
- $3,995.00Outdoor Package
Orientation (looking UP the staircase)
- $0.00The stair lift will be on the left
- $0.00The stair lift will be on the right
Installation
- $0.00Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?
- $499.00Stair Lift Removal Service
- $0.00CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled
Installation Special Cases
- $460.00Installation On Concrete, Steel, or Tile Stairs is available.
- $0.00Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.
Shipping Note
- $0.00Installation by Trained Installers is Included with the Shipping Cost
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
