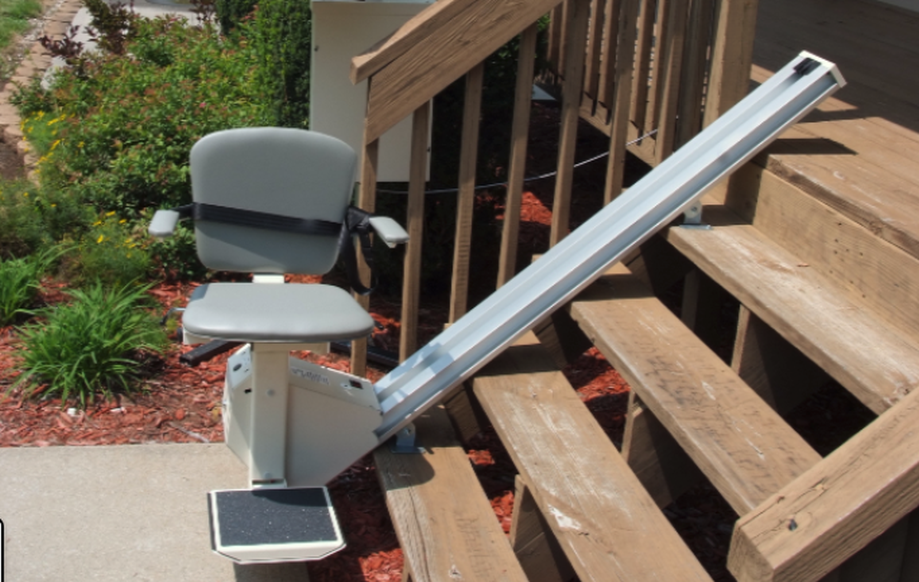

Crest HD Stair Lift Outdoor

spacer
Call (859) 494-5235 for the absolute lowest price on this product.
Your Price$2,895.00
MSRP
Additional Shipping?Yes
*Non-Contiguous U.S. States & Territories - please call for shipping charges.
1 year on batteries
2 years on parts
5 years on drive train, motor and circuit board
Product Review
(0)
(0)
Write a review!
No Sales Tax in most states.
The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
  • ETL listed A17.5 / B44 - A18.1
  • Heavy duty canvas cover
  • Outdoor powder coating
  • Sealed switches and waterproof connections
  • Rack and pinion drive
  • Interior gear rack
  • 25 to 45 degree angle applications
  • Quick adjustment limit cams
  • Folds to 12.5" from the wall
  • Chassis weight 40 lbs.
  • Track weight for 8' section 36 lbs.
  • Wireless seat control
  • Wireless remote controls for upper and lower landings
  • 15' track standard, additional sections available
  • Chassis mounted auxiliary control switch
  • Obstruction audio beep notification
  • Battery operated system
  • Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
  • Constant pressure controls
  • 3" to 6" horizontal extension at top landing (depending on angle)
  • 90 degree swivel seat assembly at top landing
  • ANODIZED aluminum rail
  • Black, Gray, Beige or Brown upholstery
  • Seat belt
  • Folding arm rest
  • Proudly made in the USA!
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
Drive TypeRack and Pinion
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedNo
Swivel SeatYes
Standard Capacity350 lb
Max Track Length, Standard15'
Constant Pressure ControlsYes
Footrest Safety SensorNo
Rail Angle, Min25°
Rail Angle, Max45°
Track MaterialAnodized Aluminum
Swivel Seat Rotation90 Degrees at top landing
Warranty1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
Flip-Up SeatYes
Call Stations Included2
Flip-Up ArmrestsYes
Track Width6.5"
Digital Diagnostics DisplayNo
Key LockNo
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height

  • Stair Lift Orientation

    • $0.00
      No Image
      Right
      spacer
    • $0.00
      No Image
      Left
      spacer

  • Upholstery Color

    • $0.00
      Black
      Black
      spacer
    • $0.00
      Walnut
      Walnut
      spacer
    • $0.00
      Caramel
      Caramel
      spacer
    • $0.00
      Gray
      Gray
      spacer

  • Seat Width

    • $0.00
      No Image
      Standard
      spacer
    • $230.00
      No Image
      Arms Extended 2" on Either Side
      Option extends the arms out 2" on each side, giving the distance between the arms a 4" increase. Seat actually does not change. Unit must be installed further from the wall for a full 90 degree turn at the top of the stairs, as the arms will hit the wall sooner in the swivel process.
      spacer

  • Chassis / Track Custom Color

    • $310.00
      No Image
      Chassis Custom Color
      spacer
    • $0.00
      No Image
      RAL Color for Chassis Powder Coat
      spacer
    • $462.00
      No Image
      Track Custom Color
      spacer
    • $0.00
      No Image
      RAL Color for Track Powder Coat
      spacer

  • Track Length

    • $0.00
      No Image
      Standard 15' Of Track
      spacer
    • $75.00
      No Image
      Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)
      spacer

  • Stair Lift Measurements According to Measurement Guide

    • $0.00
      No Image
      Step 1 - Total Staircase Length
      spacer
    • $0.00
      No Image
      Step 2 - Top Landing to Bottom Step
      spacer
    • $0.00
      No Image
      Step 3 - Stair Width
      spacer
    • $0.00
      No Image
      Step 4 - Available Space at Bottom
      spacer
    • $0.00
      No Image
      Step 5 - Height of One Step
      spacer
    • $0.00
      No Image
      Step 6 - Length of One Tread
      spacer
    • $0.00
      No Image
      Step 7 - One Step Front Edge to Front Edge
      spacer
    • $0.00
      No Image
      Step 8 - Available Space at Top
      spacer

  • Options

    • $230.00
      Cargo Tray Add-On
      Cargo Tray Add-On
      (Shown with Crest HD Indoor Stair Lift - purchased separately)
      spacer
    • $154.00
      No Image
      Wall Mounted Call/Send Controls (set)
      spacer
    • $77.00
      No Image
      Additional Key Fob Remote
      spacer
    • $38.00
      No Image
      Additional Standard Brackets
      Beyond 15' in length, you need another bracket for each 2.5' beyond the 15' of rail.  Price is for each bracket assembly (base, upright, hardware)
      spacer
    • $39.00
      No Image
      Tall Brackets
      spacer
    • $23.00
      No Image
      Extra Splice Bar
      Beyond the standard 15' of track included one splice kit is needed to accommodate an additional piece of track.
      spacer
    • $77.00
      No Image
      Key Switch
      spacer
    • $77.00
      No Image
      Lockable Battery Disconnect
      spacer
    • $124.00
      No Image
      Bluetooth Controller
      spacer
    • $1,495.00

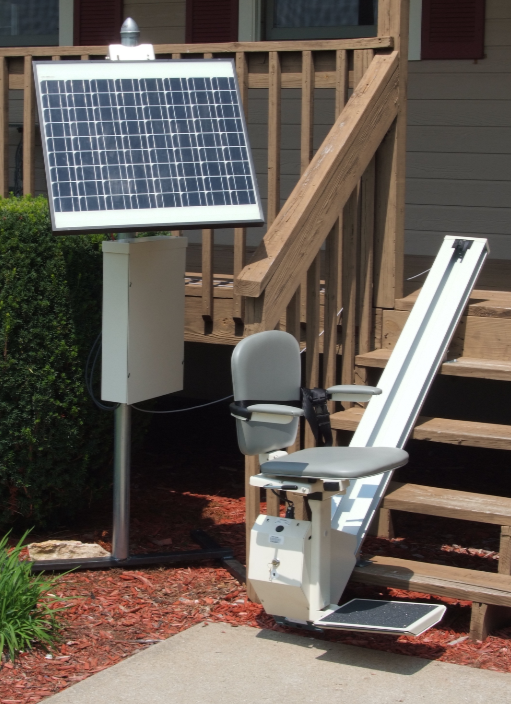

      Crest HD Solar Power Unit
      Solar Power Unit
      Provides power to the stair lift if AC power is not available
      (Shown with Crest HD Outdoor Stair Lift - purchased separately)
      spacer

  • Installation

    • $0.00
      No Image
      Self-Install
      spacer
    • $599.00
      No Image
      Nationwide Installation Service
      spacer
    • $437.50
      No Image
      Double Stair Lift Installation Service - Per Stair Lift
      spacer
    • $749.00
      No Image
      Nationwide Measurement and Installation
      spacer
    • $499.00
      No Image
      Stair Lift Removal and Disposal
      spacer

  • Installation Special Cases

    • $345.00
      No Image
      Installation In Remote or Limited Access Location
      spacer
    • $300.00
      No Image
      Installation On Concrete, Steel, or Tile Stairs
      spacer

  • Shipping

    • $154.00
      No Image
      Additional Shipping Charge for Unit with More Than 16' of Track
      spacer
    • $0.00
      No Image
      Shipping to Alaska or Hawaii (Call for Price)
      spacer
spacer
spacer
Made in America
spacer
spacer
Product Reviews
This product currently has no reviews. Would you like to leave one?
